DC solar · JIABO Practical Series

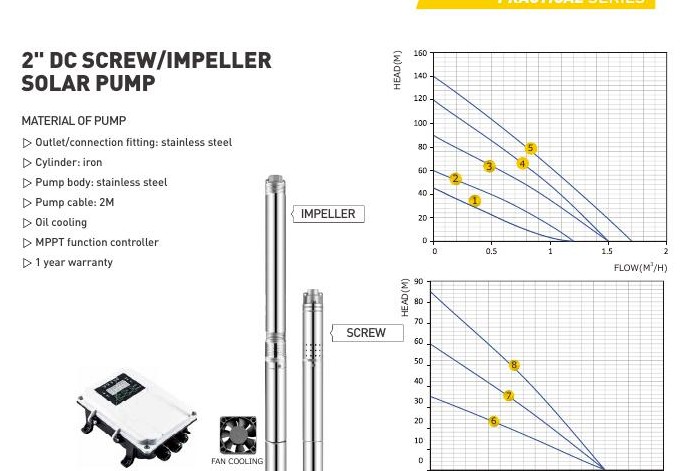

2" DC Screw and Impeller Solar Pumps
Compact deep-well solar pumps for low-flow, high-head water supply where bore diameter is limited.
Power180-750 W
Maximum flow1.2-1.7 m³/h
Maximum head35-140 m
Outlet0.75"
Applications
Where this family fits.
- Remote household water
- Livestock watering
- Small-scale irrigation
Construction
Catalog-specified materials.
- Stainless-steel outlet and pump body
- Iron cylinder
- 2 m pump cable
- Oil-cooled motor
Representative selection
Example models.
Values shown are catalog maximums, not a guaranteed operating point. Use the performance curve and system calculation for final selection.
| Model | Power | Max flow | Max head | Outlet |
|---|---|---|---|---|
| JBYZ1.2-45-24-180 | 180 W | 1.2 m³/h | 45 m | 0.75" |
| JBYZ1.5-90-48-400 | 400 W | 1.5 m³/h | 90 m | 0.75" |
| JBYZ1.7-140-96-750 | 750 W | 1.7 m³/h | 140 m | 0.75" |
| JBYX1.5-85-72-600 | 600 W | 1.5 m³/h | 85 m | 0.75" |
Avoid undersizing
Let us match the pump to your system.
Include flow, total dynamic head, well diameter, water level, pipe length, location and power source.
