AC/DC hybrid · JIABO Practical Series

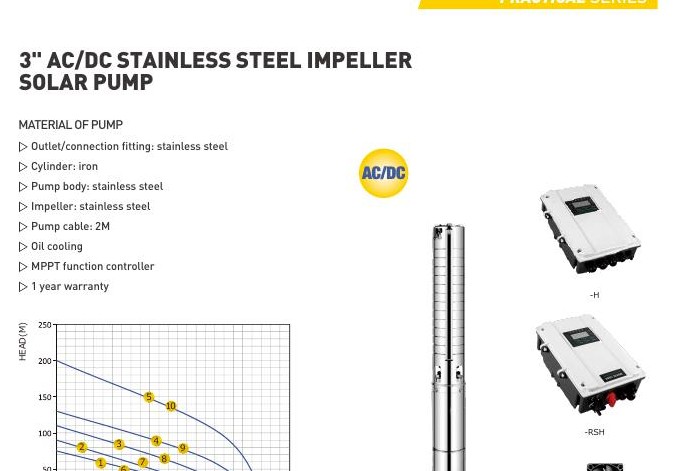

AC/DC Hybrid Solar Pump Systems
Hybrid pump families that can operate from solar DC or single-phase 220 V AC power or a generator.
Power600-7,500 W
Maximum flow3-160 m³/h
Maximum head10-260 m
Outlet1-6"
Applications
Where this family fits.
- Unreliable-grid locations
- Backup water supply
- Continuous agricultural operation
Construction
Catalog-specified materials.
- Plastic or stainless-steel impeller borehole options
- Surface, pool and submersible families
- MPPT controller
- Model-dependent materials
Representative selection
Example models.
Values shown are catalog maximums, not a guaranteed operating point. Use the performance curve and system calculation for final selection.
| Model | Power | Max flow | Max head | Outlet |
|---|---|---|---|---|
| JBYX3.5-230-280-2200-H | 2,200 W | 3.5 m³/h | 230 m | 1" |
| JBYL6.5-260-305-3000-HLV | 3,000 W | 6.5 m³/h | 260 m | 1.25" |
| JBD160-30-400-7500-6H380 | 7,500 W | 160 m³/h | 30 m | 6×6" |
| JBYR56-14-205-2200-HLV | 2,200 W | 56 m³/h | 14 m | 4" |
Avoid undersizing
Let us match the pump to your system.
Include flow, total dynamic head, well diameter, water level, pipe length, location and power source.
